Oscilloscope Waveforms

Misc. Waveforms

---

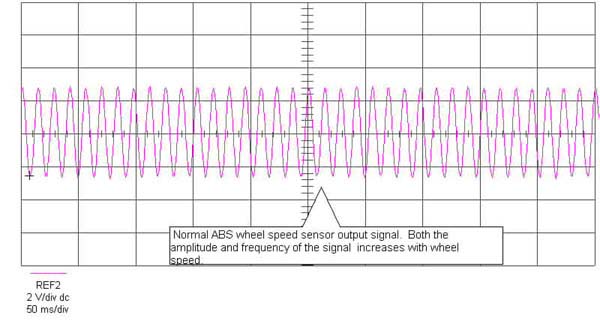

ABS Wheel Speed Sensor output waveform, normal

---

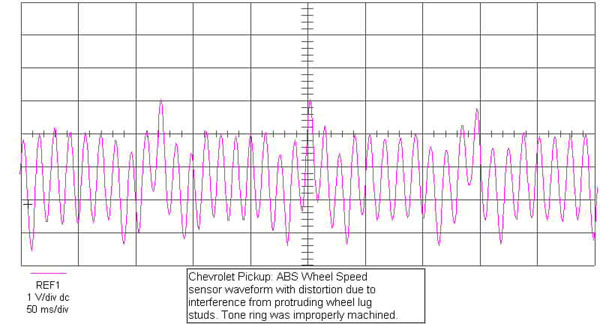

ABS Wheel Speed Sensor, abnormal waveform

---

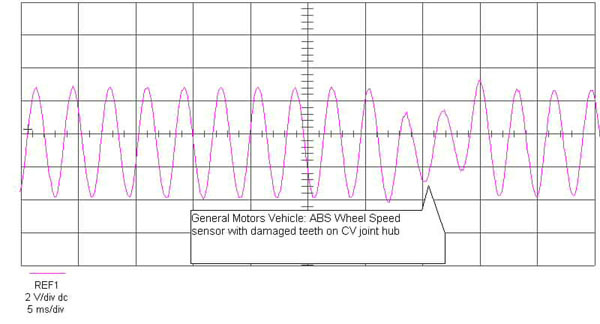

ABS Wheel Speed Sensor, abnormal waveform

---

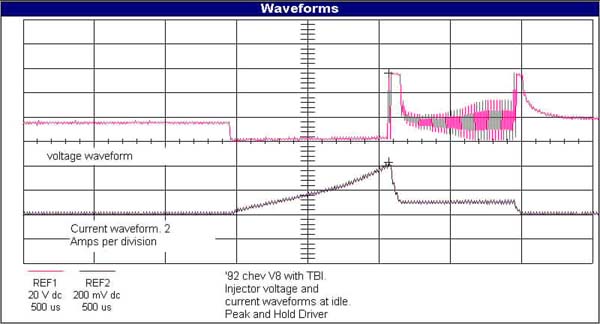

GM Throttle Body Fuel Injector

---
