Oscilloscope Waveforms CIS Waveforms

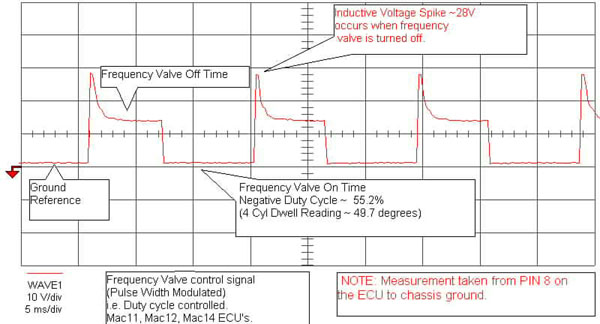

CIS frequency valve waveform,

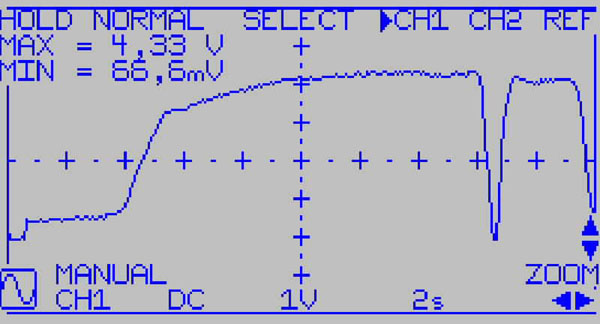

CIS Air Flow Meter Potentiometer output voltage during gear shift from 3rd to 4th,
Oscilloscope screen display

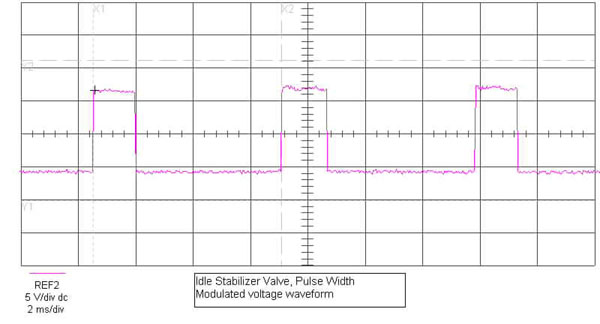

Idle Stabilizer Valve Signal

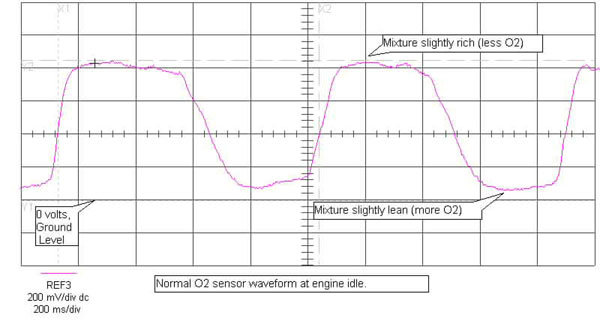

O2 Sensor Waveform (closed loop operation)
