AAN 5 Cylinder 20V Turbo Engine Photos

Audi Parts

Front View of the engine on the bench, showing the timing belt, tensioner, waterpump

View of the engine on the left side

Close Up View of the left side of the engine showing the after-run sensor,
multi-function temp sensor, oil pressure gauge sensor, oil pressure warning sensor

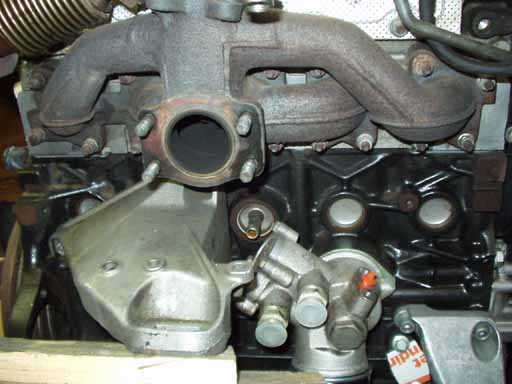

Right side of the engine with the turbo removed

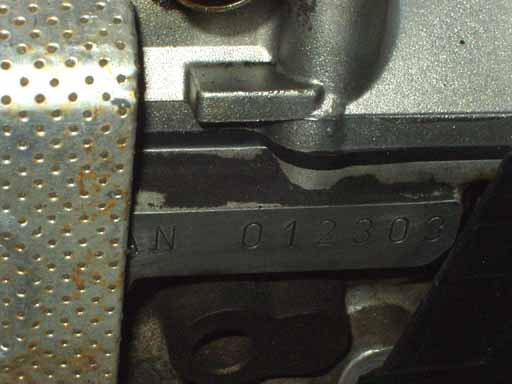

Location of the Engine serial number, right front side of the engine on the cylinder head

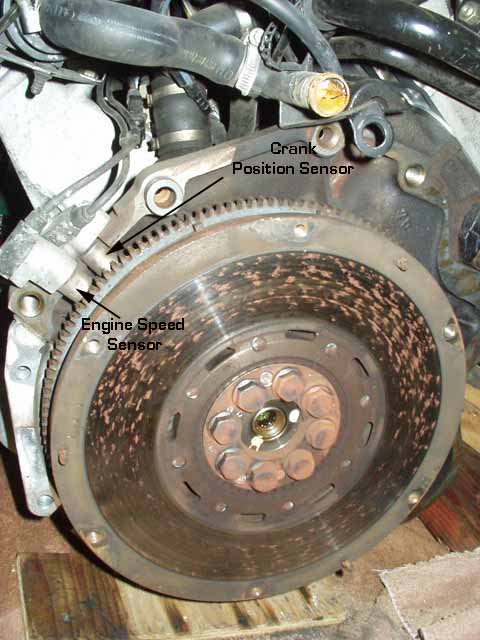

Dual Mass Flywheel showing the Crank Position (62 Degree BTDC) and Engine Speed (RPM) Sensors

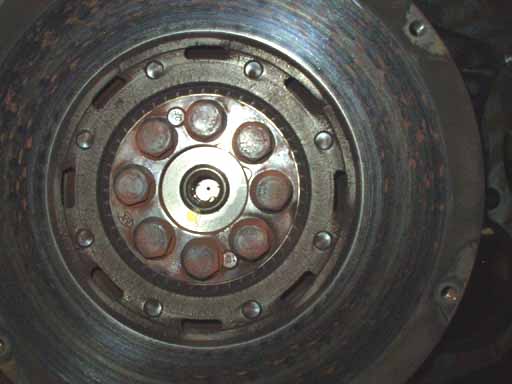

Close up of the flywheel bolts and the pilot bearing
