1990 200TQ, 1990-91 200T 10V Fuel Pump Photos

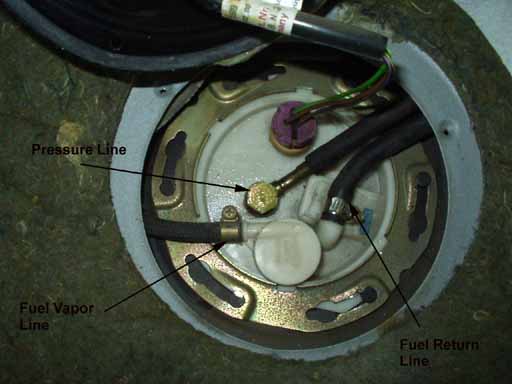

Overhead view of the fuel tank sending unit after the cover plate has been removed.

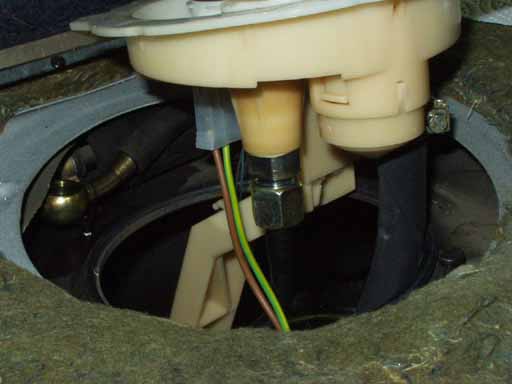

Sending unit pulled up to expose the electrical connector, the pressure line fitting and the return hose.

Fuel pump assembly with 3214 tool installed to illustrate how to use this tool to twist the reservoir counter-clockwise 1/2 inch to remove the pump assembly from the tank mount.

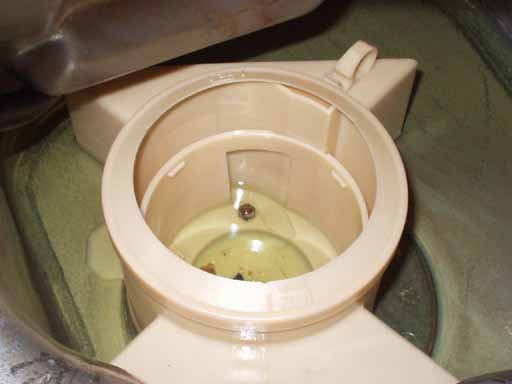

After the fuel pump with reservoir have been removed using the 3214 tool, this is the opening left in the tank pump holder assembly.

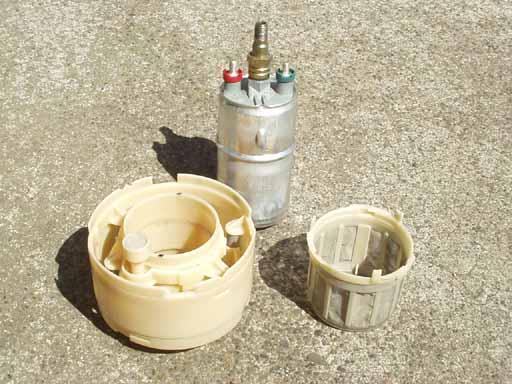

Original 60mm Fuel pump with reservoir, filter screen, hose, pressure damper and electrical wiring

Original 60mm Diameter Fuel pump and upper reservoir with twist lock screen

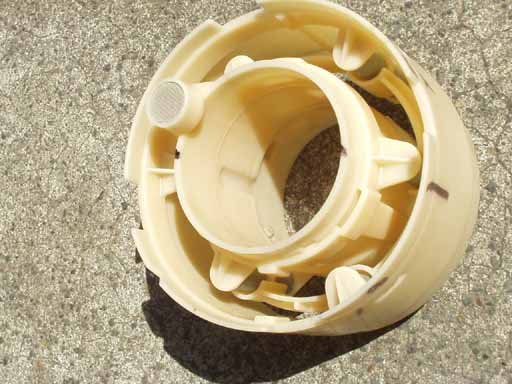

Original 60mm ID reservoir showing the locating notch for the original fuel pump

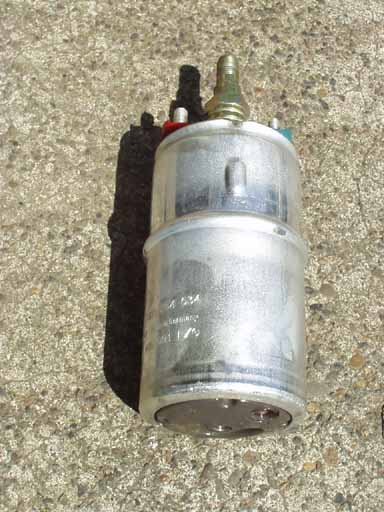

Original 60mm Fuel Pump with narrow style locating tang and no filter screen

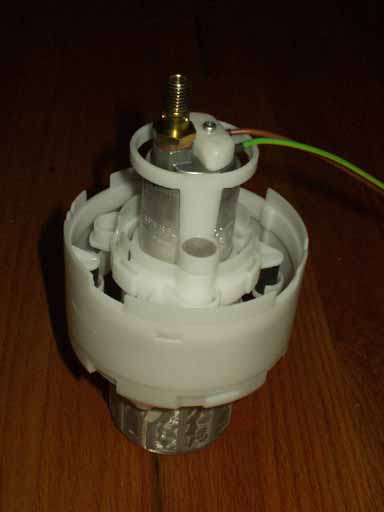

The new 43mm (Pierburg brand) fuel pump installed in the new Reservoir housing

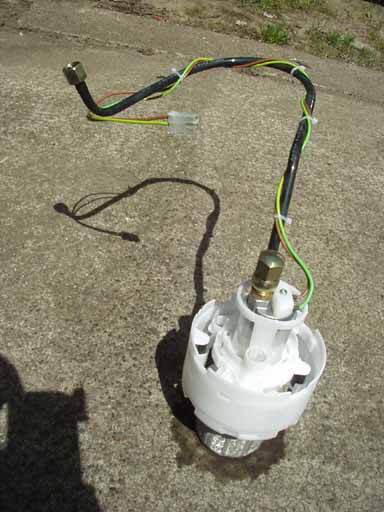

New 43mm fuel pump installed in new reservoir with existing fuel line and the cap nut in place of the old damper. Note the direction of the fuel line when removing from old pump and reservoir.

The two notches on the white reservoir should be at the 10 o'clock position to the left of the fuel line at 12 o'clock Tie wraps were included to fasten the new pump wiring to the existing fuel line.

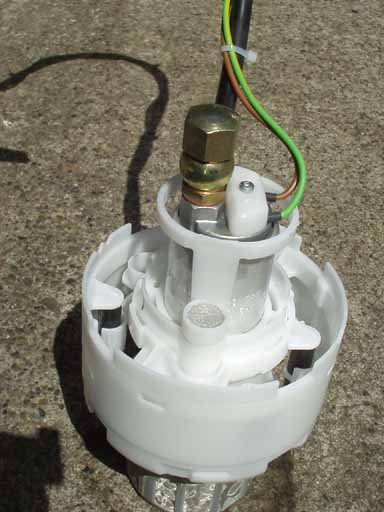

Close up shot showing the new pump and connections.

New pump and reservoir have been installed after using 3214 tool to rotate the reservoir slightly to the left for installation into the fuel tank pump holder assembly.

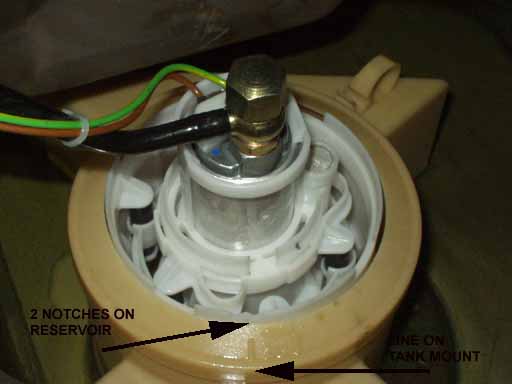

Note the two notches on the reservoir and the lines on the tank holder assembly.

The reservoir is inserted into the tank pump holder with the two notches at the first line on the right, then it is rotated clockwise with the 3214 tool to line up the two notches with the 2nd line. Note the fuel line is to the left.
