Audi small K26 Turbo Map

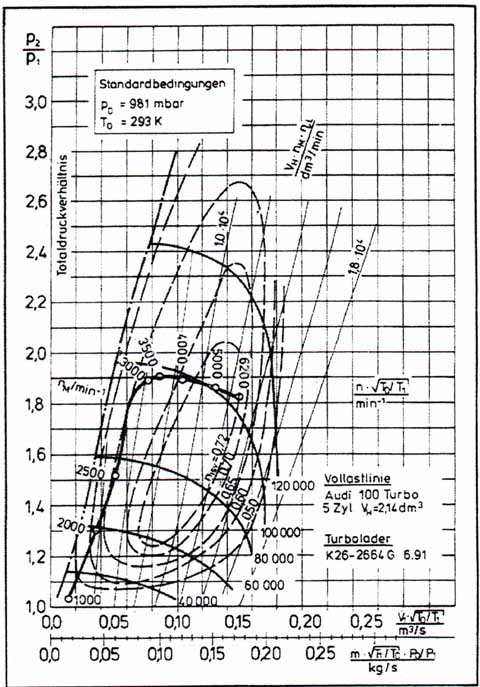

Here is the Audi "small" K26 Turbo Map, as used on the KH designated Turbo Engine, with the 2664 GA Compressor and 6.91 Exhaust Turbine, Audi part number 035 145 703M, K** # 5326 970 6412

The actual air flow values from the 2.1 litre 5 cylinder Audi Turbo engine at several RPM points are plotted on this map.
